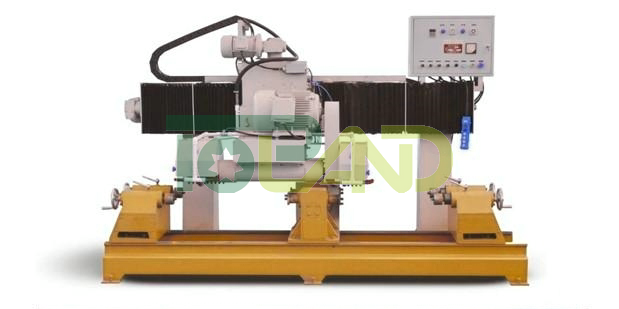

TYZ-4 Stone Baluster Column Vase Cutting Machine

  • TYZ-4 Stone Baluster Column Vase Cutting Machine

Product Item: TYZ-4
Category: Special Profile Shaped Stone Machinery
Views: 1243
Max cutting diaeter: 200mm
Cutting length: 600-800mm
Blade diameter: 400mm
Main motor power:11Kw
Product Manual:Stone baluster Column Vase Cutting machine with 1 pc , 2 pcs, 4 pcs one time are available.

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL


PRODUCTS DESCRIPTION

Machine with the function of auto shape cutting, cutting sides, grinding sides, moving backward, imitating straight stone-line, column, pillar, column head, column cap, whorl pillar, vase. It can shape and process arc stone-line with the series shaking working platform. It can process the column, column head, column cap, whorl pillar, vase and other special art craft with series of bed spare parts. Its electric system adopted advanced electric component world wild, it runs nicety and stable with high quality and performance. It is the first choice for the stone art carving and material factories because of its perfect on structure, hardness and nicety.

TECHNICAL PARAMETERS

Topland | TYZ-1/2/4 Stone Column Cutting Machine(Baluster)

Model

Unit

TYZ-1

TYZ-2

TYZ-4

Cutting qty per time.

Pcs

1

2

4

Max. cutting length

mm

3000

1800

800

Max. cutting diameter

mm

Ф500

Ф200

Ф200

Blade diameter

mm

Ф350-ф500

Ø350-Ø400

Ø350-Ø400

Main motor power

Kw

11

7.5

11

Gross power

Kw

16.3

11

14.5

Exhausted water

m³/h

3

3

3

Overall dimensions

mm

4500X1150X2200

3010×1020×1500

3010×1020×1500

Gross weight

Kg

2200

1600

2000
