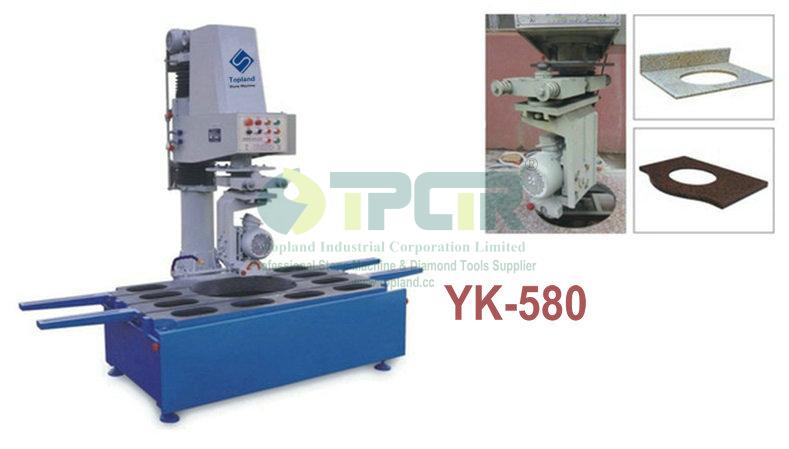

YK-580 Countertop Sink hole cutting machine is mainly used for cutting ellipse or round hole in slabs, which can save much labour, improve production efficiency and increase cutting quality. It is suitable for mass production.
This machine head can be rotated 360°round a center axis under the guide of working model. The rotation speed and lifting machine head can be controlled and the cutting depth can be adjusted. The machine head will turn back after cutting. A slide board is fixed on the machine head to adjust cutting size with the same model. The machine is easy to operate.
Rotation Speed |
6400 r/min |
Mainly Axis |
0.7-1.4 r/min |
Blade Axis Turning Degree |
25° |
Blade Axis Center Line To Worktable Space Size |
0-340 mm |
Dimension Of Saw Blade |
¢105-¢125 mm |
Power Supply |
2.02 KW |
Blade Hole Size |
¢20 mm |
Inner Diameter Of Model |
¢100 mm |
Max Hole Diameter |
≤580 mm |
Max Diameter(Ellipse Model) |
长、短、轴、a、b≤290 mm |
Dimension Of Working Table |
1200×780 mm |
Overall Dimension |
1230×1200×1830 mm |
