PRODUCTS DESCRIPTION

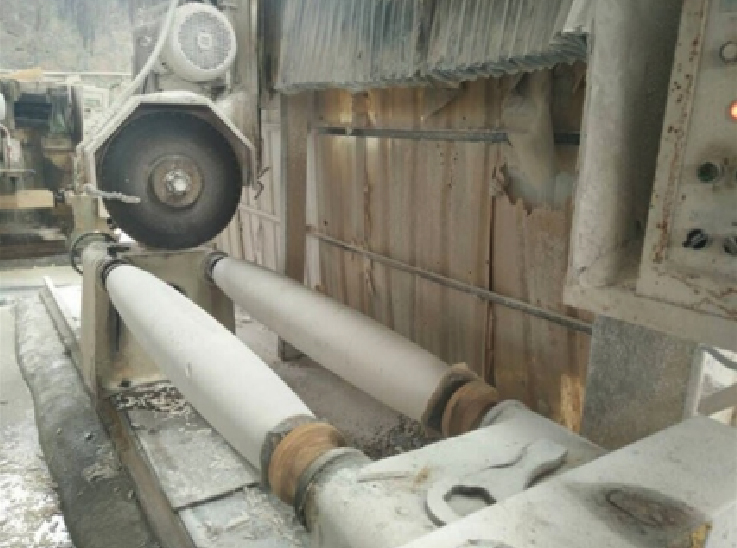

Machine with the function of auto shape cutting, cutting sides, grinding sides, moving backward, imitating straight stone-line, column, pillar, column head, column cap, whorl pillar, vase. It can shape and process arc stone-line with the series shaking working platform. It can process the column, column head, column cap, whorl pillar, vase and other special art craft with series of bed spare parts. Its electric system adopted advanced electric component world wild, it runs nicety and stable with high quality and performance. It is the first choice for the stone art carving and material factories because of its perfect on structure, hardness and nicety.
TECHNICAL PARAMETERS

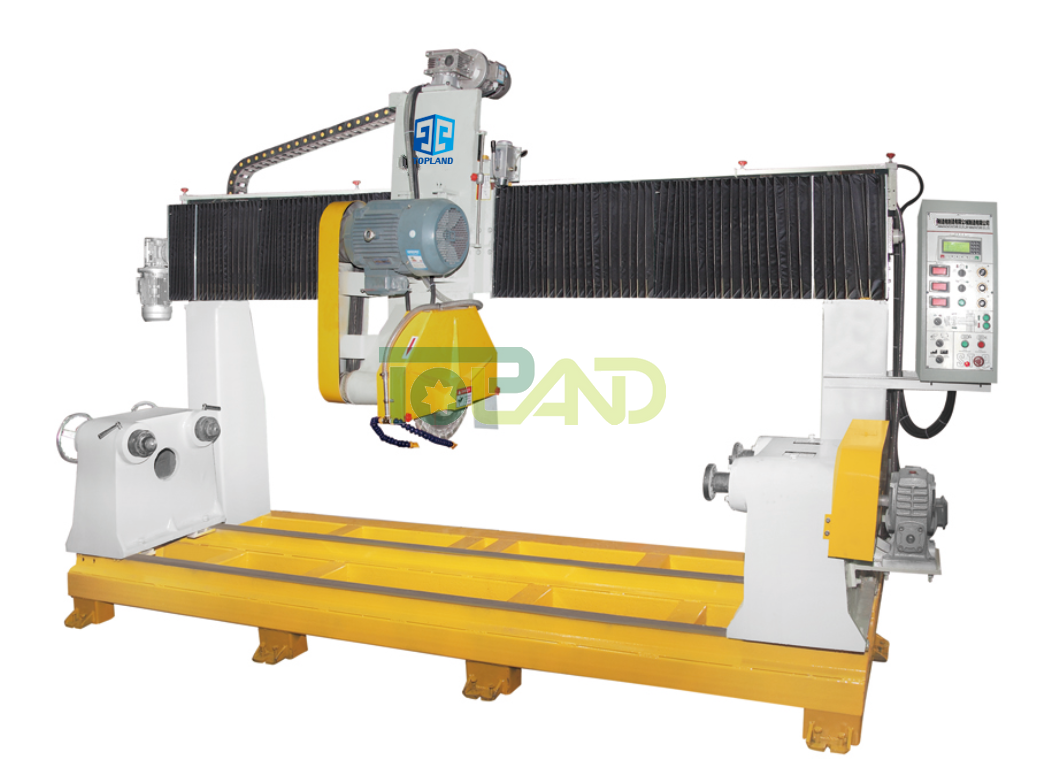

Topland | TYZ-1/2/4 Stone Column Cutting Machine(Baluster)
Model
Unit
TYZ-1
TYZ-2
TYZ-4
Cutting qty per time.
Pcs
1
2
4
Max. cutting length
mm
3000
1800
800
Max. cutting diameter
mm
Ф500
Ф200
Ф200
Blade diameter
mm
Ф350-ф500
Ø350-Ø400
Ø350-Ø400
Main motor power
Kw
11
7.5
11
Gross power
Kw
16.3
11
14.5
Exhausted water
m³/h
3
3
3
Overall dimensions
mm
4500X1150X2200
3010×1020×1500
3010×1020×1500
Gross weight
Kg
2200
1600
2000
