PRODUCTS DESCRIPTION

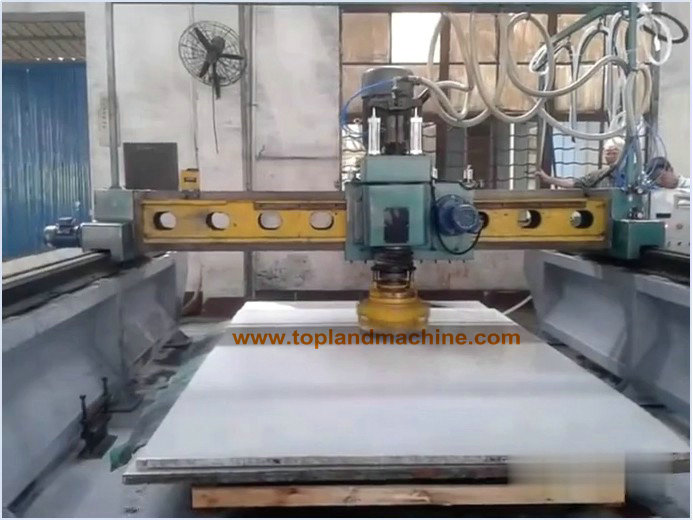

Topland JDTM series Bridge Type Single Head Stone Polishing Machine (fickert abrasive head) is widely used stone processing factory, especially for polishing stone monument tombstone and big thickness size stone slab and tiles.

It is with bridge type structure, single head, adopts D.450 fickert polishing heads with 6 claws for both granite and marble and steel polishing machine.

Having a PLC programmer, the machine can automatically grind the materials in the ways of longitudinal & transverse direction, and also Z route.

The grinding head controlled by air cylinder to up/down. Their longitudinal and transverse movements are enabled by Cycloidal pin reducer.

It features low cost and high grinding efficiency, to ensure good gloss of polishing.

TECHNICAL PARAMETERS

Topland | JDTM-120/220 Single Head Granite and Marble Polisher
Model	Unit	JDTM-120	JDTM-220
No. of heads	pc	1	1
Max. Polish width*length	mm	3000 x 1300mm	3200 x 2000 mm
Max. Slab thickness	mm	60(80)mm	60(80)mm
Head rotation speed	rpm	450	450
Total power	kw	12.5	14.7
Machine overall dimension	mm	5000×2225×2100	5630×3700×2200
Approximate weight	Kg	3200	4500/5500/6500
Container required	Pc		20ft * 1
