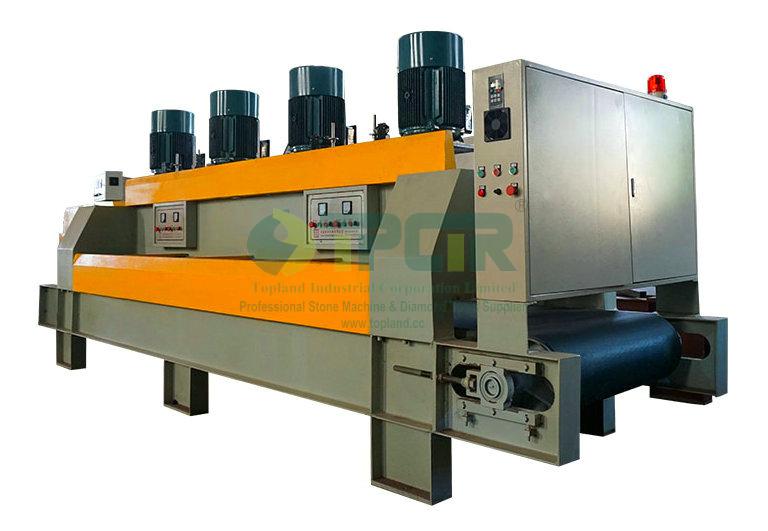

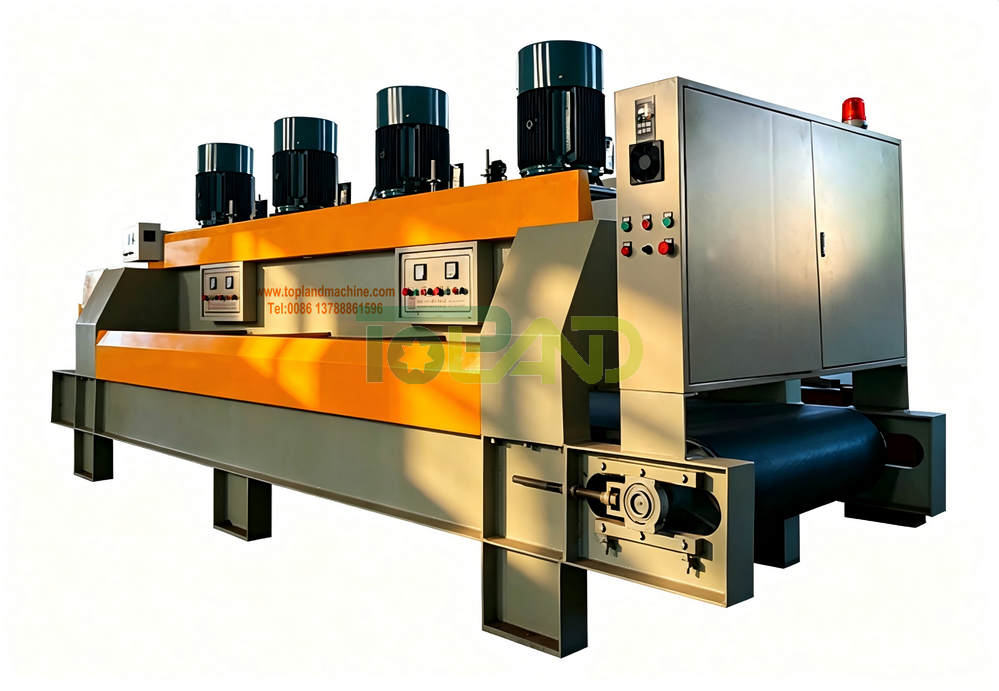

TDH-4C Four Heads Continuous Stone Calibrating Machine

  • TDH-4C Four Heads Continuous Stone Calibrating Machine
  • TDH-4C Four Heads Continuous Stone Calibrating Machine

Product Item: TDH-4C
Category: Stone Polishing Machine
Views: 1621
MAX PROCESSING THICKNESS 100MM
Max processing width 600~1200mm
Power of main motor:11~15 Kw
Belt speed are variable
Product Manual:China good quality full automatic stone calibrating machine and polishing machine for marble and granite tiles and concrete

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Stone Calibrating machine for leveling the thickness of stone slabs, like marble and granite, to even thicknessofstone.

TECHNICAL PARAMETERS:

Max. cutting width

mm

600

800

Max. cutting thickness

mm

100

100

Speed of conveor belt

m/min

0.4-3

0.4-3

Main motor power

kw

11kw/4pcs

15kw/4pcs

Gross power

kw

46.23

62.23

Exhausted water

m³/h

4

4

Gross weight

kg

5600

5600

Overall dimensions(L×W×H)

mm

5270X1080X1880

5570X1590X1880

Width of processing can be from 600~1200mm, according to customer requirement.
