TPM 1+3 Automatic Stone tiles calibrating and polishing machine

  • TPM 1+3 Automatic Stone tiles calibrating and polishing machine
  • TPM 1+3 Automatic Stone tiles calibrating and polishing machine
  • TPM 1+3 Automatic Stone tiles calibrating and polishing machine

Product Item: TPM 1+3
Category: Stone Polishing Machine
Views: 3382
No.of polishing heads:1+5 heads
Range of Polishing width:400~1200mm
Power of main motor:7.5/18.5 Kw
Polishing tools : Frankfurt Abrasive
Product Manual:China good quality full automatic stone calibrating machine and polishing machine for marble and granite tiles and concrete

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

TECHNICAL PARAMETERS:

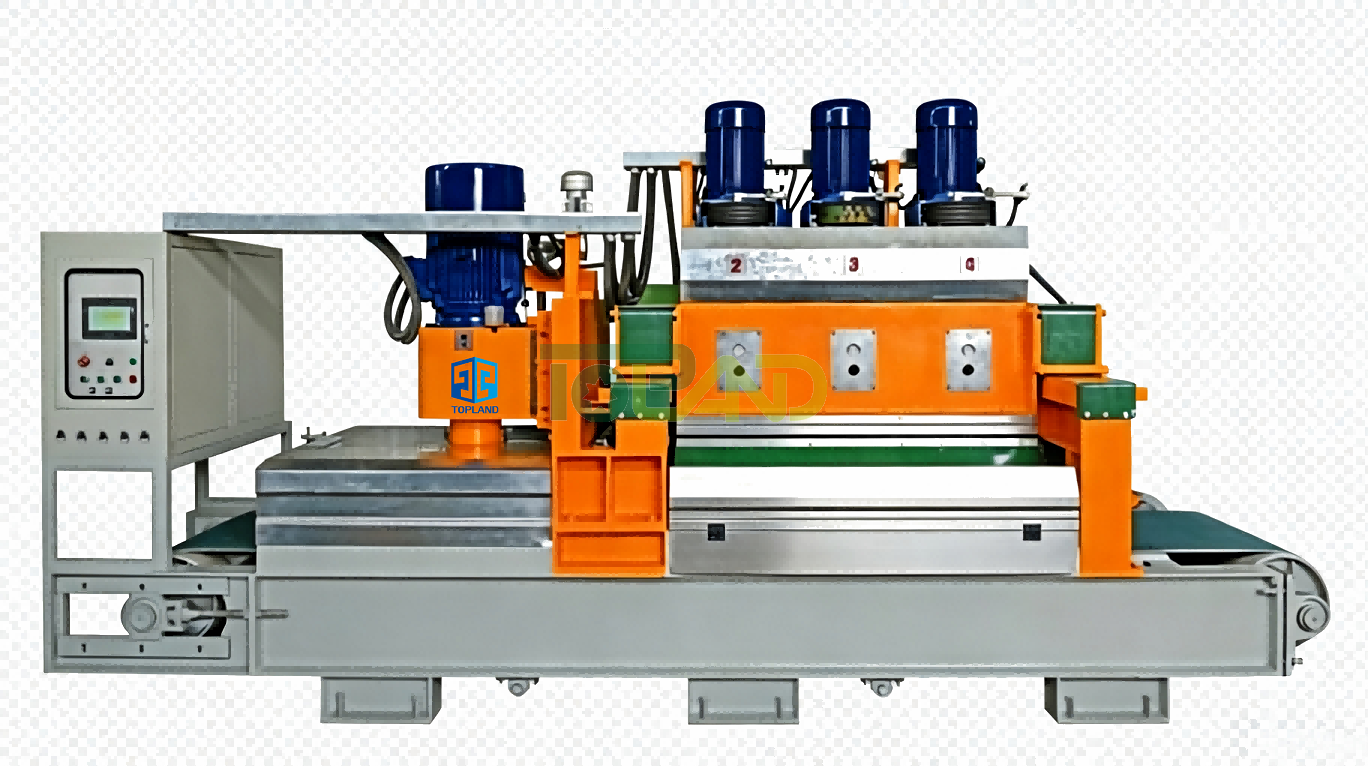

It is a polishing machine with 1 calibrating head and 3 polishing heads.

The machine can be used to polishing marble, granite and concrete

The Max. width is 650mm.

The Max. polishing thickness is from 35 to 200mm.

TPM 1+3
No. of calibrating head 1
No. of polishing head 3
Useful working width 300-650mm
Useful working thickness 35-200mm
Power of polishing head 7.5kw


ONE COMPLETE SET MACHINE INCLUDING:

Item

Parts Name

Qty.

Function

1

Loading Table

1

Loading slabs

2

Transmit Table

1

Transmitting slabs

3

Auto-Feeding Table

1

Slabs feeding

4

Main Machine

1

Polishing slabs

5

Blower Dry Table

1

Slabs blowing/drying

6

Unloading Table

1

Unloading slabs

7

Air Compressor

1

Supplying compressed air

8

Air Container

1

Container for compressed

9

Air Dryer

1

Air Drying compressed air

10

Assembling Parts

1

For necessary assembly




Hello Dear Friend ,your enquiry or information requirement are mostly welcome to mail us at mail: topland.ken@vip.163.com , or Our Cell/Whatsapp/ Wechat/ Skype : 0086 13788861596, Thank you !
