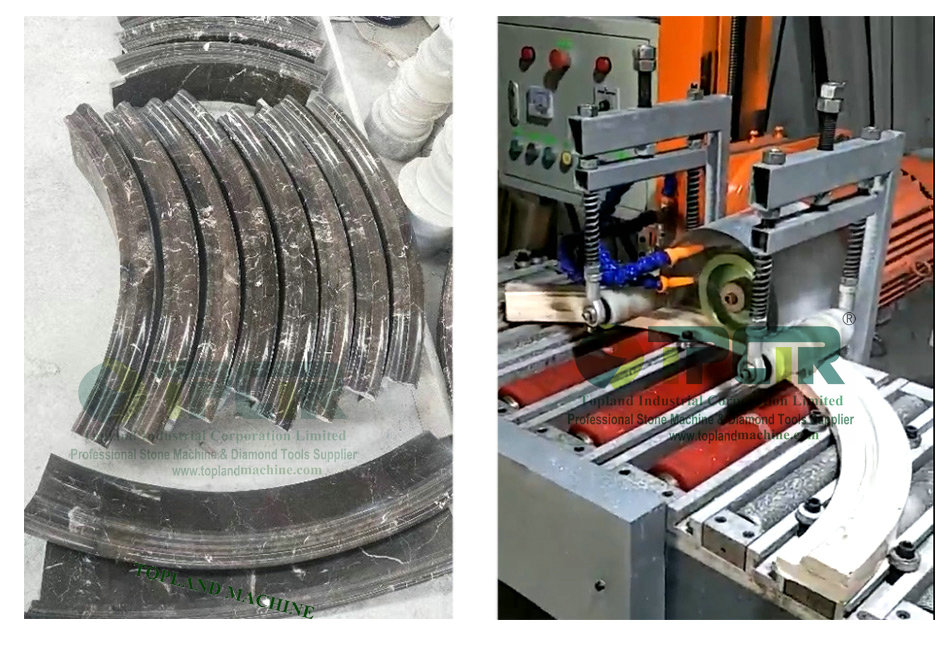

This is an original designed machine for processing straight line and arc line even full round arc line. The radius of arc line can be from 100cm to infinite arc.
Machine equipped with 7.5KW motor, pneumatic knife changing system, The transmission part adopts rack roller and guide wheel to fix the plate.
It has the features of rapid profiling and quick polishing, simple in operation and highly efficient.
It is and ideal machine for fabricating high quality arc lines.

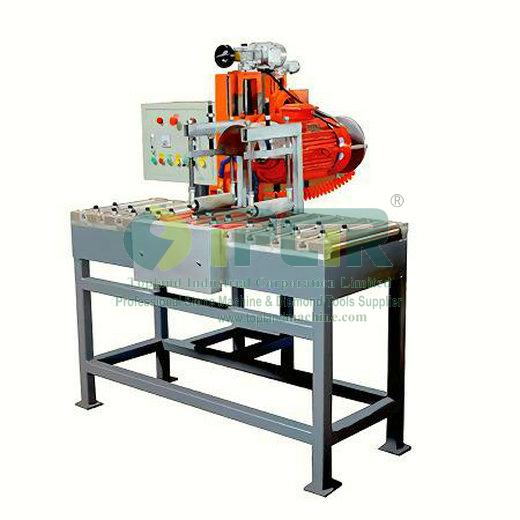

TOPLAND Arc line profiling and polishing machine |
||
Model No. |
|
TMB-100 |
Workbench dimension(L×W×H) |
mm |
1500×1000×1600 |
Working voltage |
V |
Customize |
Head chamfering rotation |
n° |
0°-45° |
Main motor power |
kw |
7.5kw |
Total power |
kw |
9kw |
Tool change model |
|
pneumatic |
Gas source requirements |
kg/f |
0.5-0.8 |
Water consumption |
m³/h |
2 |
Machine weight |
kg |
420 |
