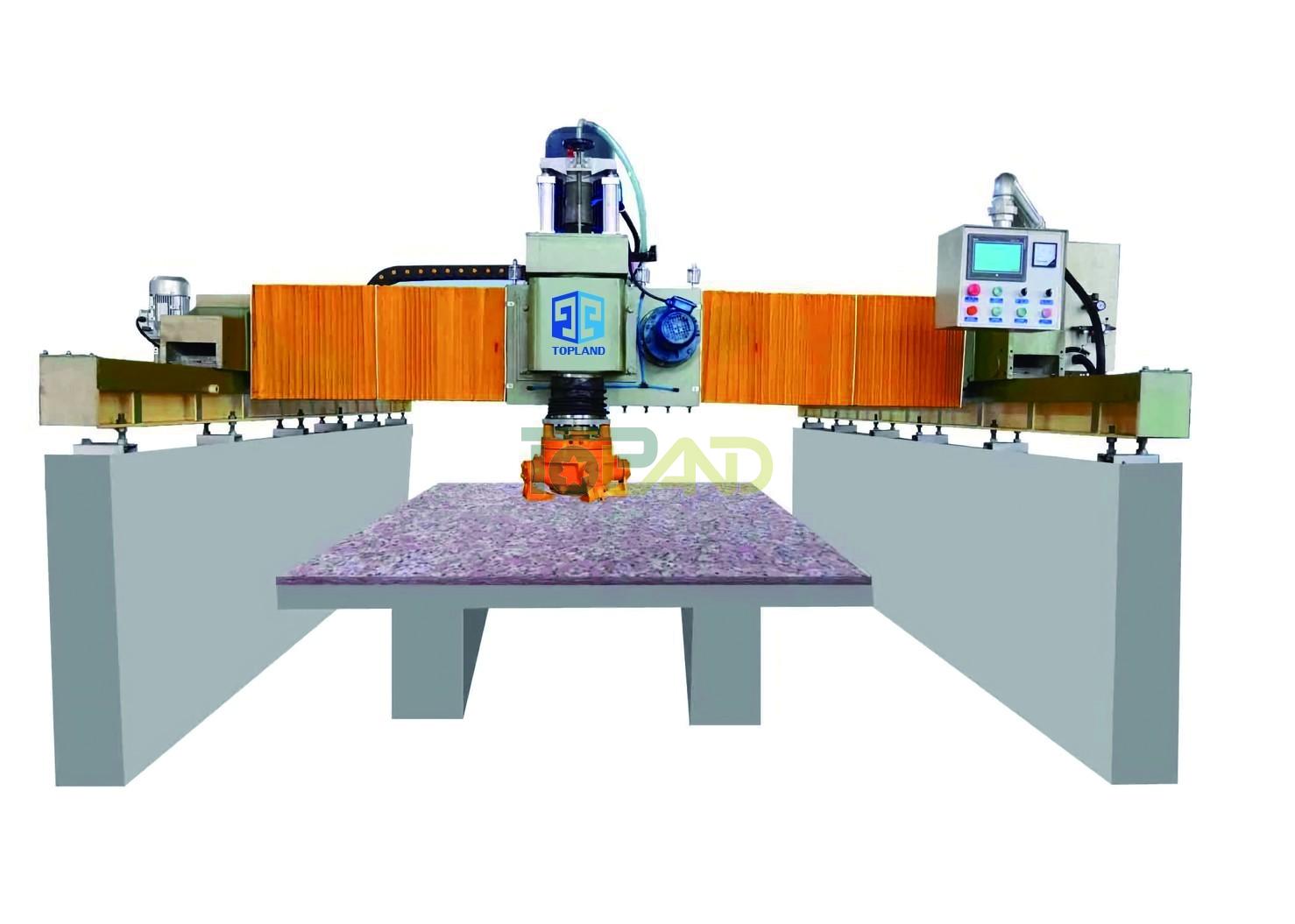

JDTM-220 Single Head Granite and Marble Polisher

  • JDTM-220 Single Head Granite and Marble Polisher

Product Item: JDTM-220
Category: Stone Polishing Machine
Views: 2258
Power of main motor 15 Kw
Max processing width 2200mm
Max processing Length 3000mm
Use single big polishing head
Product Manual:China Good Quality Chinese stone machine, stone machinery, stone cutting machine , stone bridge saw, stone cutter , stone polishing machine , full automatic stone polisher.good quality Chinese diamond

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL


PRODUCTS DESCRIPTION

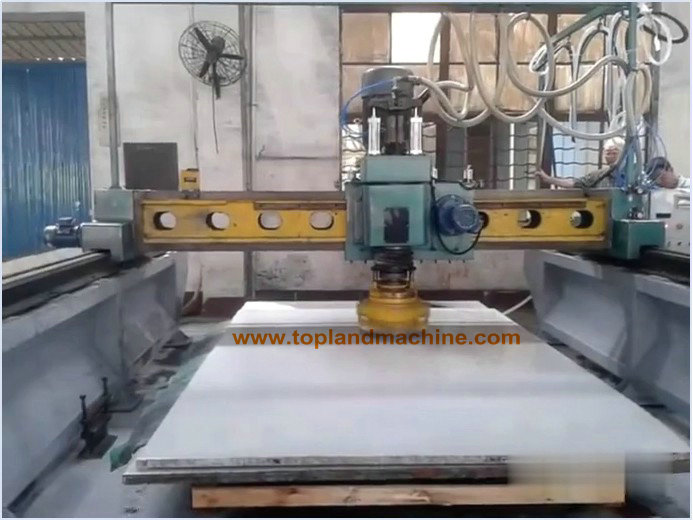

Topland JDTM series Bridge Type Single Head Stone Polishing Machine (fickert abrasive head) is widely used stone processing factory, especially for polishing stone monument tombstone and big thickness size stone slab and tiles.

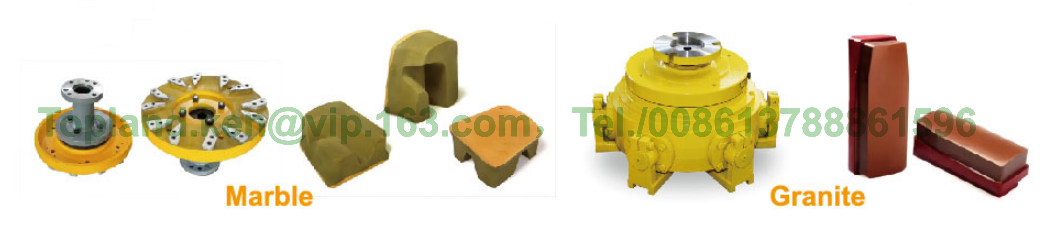

It is with bridge type structure, single head, adopts D.450 fickert polishing heads with 6 claws for both granite and marble and steel polishing machine.

Having a PLC programmer, the machine can automatically grind the materials in the ways of longitudinal & transverse direction, and also Z route.

The grinding head controlled by air cylinder to up/down. Their longitudinal and transverse movements are enabled by Cycloidal pin reducer.

It features low cost and high grinding efficiency, to ensure good gloss of polishing.

TECHNICAL PARAMETERS

Topland | JDTM-120/220 Single Head Granite and Marble Polisher

Model

Unit

JDTM-120

JDTM-220

No. of heads

pc

1

1

Max. Polish width*length

mm

3000 x 1300mm

3200 x 2000 mm

Max. Slab thickness

mm

60(80)mm

60(80)mm

Head rotation speed

rpm

450

450

Total power

kw

12.5

14.7

Machine overall dimension

mm

5002225×2100

5630×3700×2200

Approximate weight

Kg

3200

4500/5500/6500

Container required

Pc

20ft * 1
