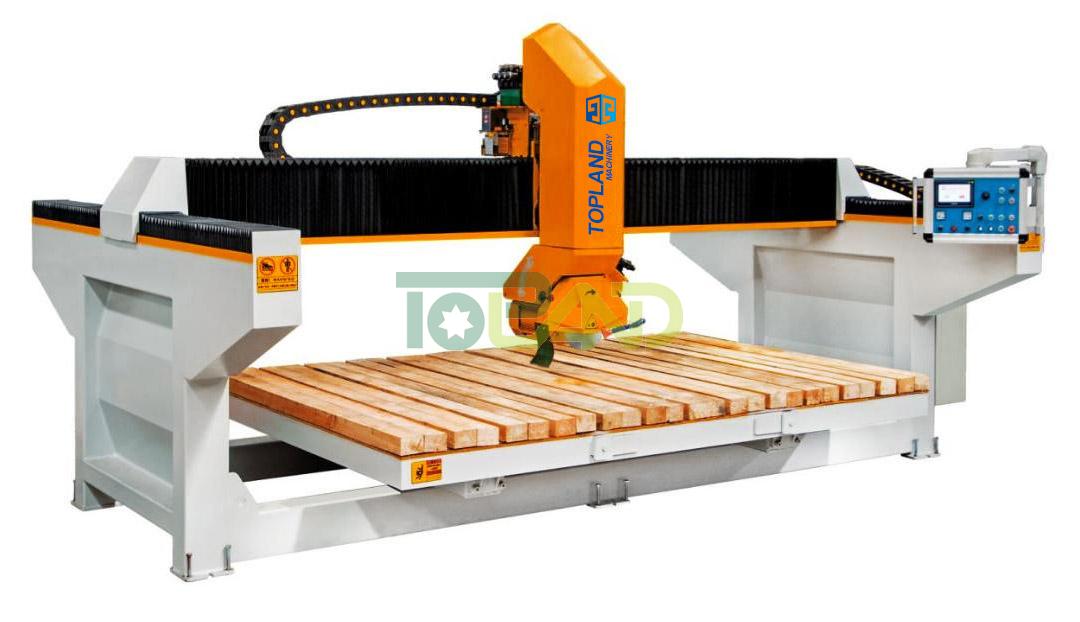

Topland | Smart350 Stone Bridge Saw Machine (3/4/5 Axis)

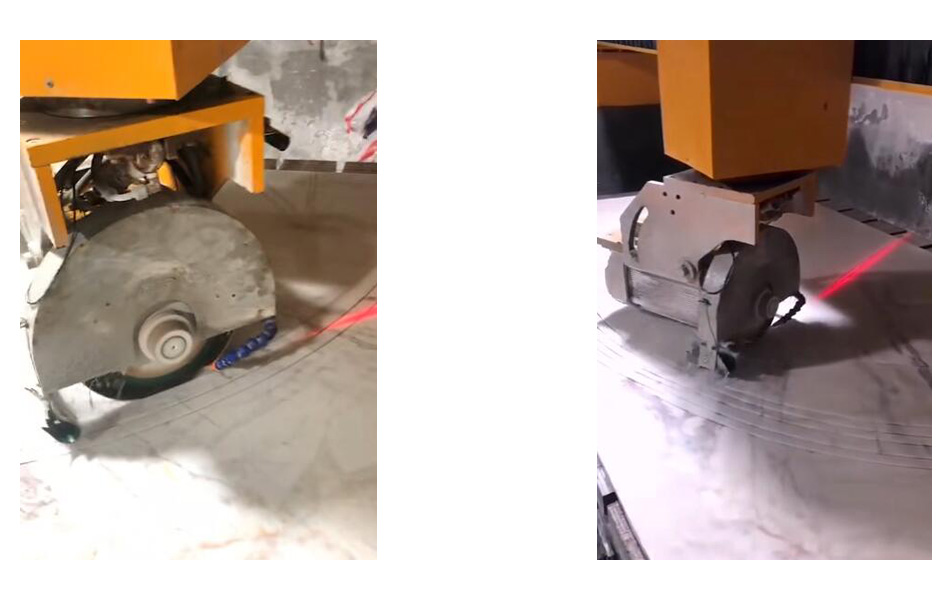

Topland smart350 series machine are mainly used for special-shaped edge and multi-functional cutting of various building materials, such as sintered rock slabs, ceramic tiles, marble, artificial stone, granite, cement products etc. It is the most suitable equipment for stone deep processing industry.
1)Small floor area: Only 15m2 (5m long x 3m wide).
2)Simple operation: Touch man-machine interface, modular parametric input, no programming, intuitive and handy operation.
3)High configuration: The main core control components adopt international first-line brand components, with stable performance and long service life.
4)High precision: All moving pairs adopt high-precision linear guide rail, which is matched with high-precision helical gear transmission, with high precision.
5)Intellectualization: All sports pairs are lubricated with automatic grease to escort them.
6)Energy saving and consumption reduction: Permanent magnet synchronous main motor is optional, which saves 30% power compared with three-phase asynchronous motor.
TECHNICAL PARAMETERS
Topland | Smart350 Stone Bridge Saw Machine (3/4/5 Axis) |
||||
Model |
# |
3 Axis |
4 Axis |
5 Axis |
Blade diameter |
mm |
Φ350 |
Φ350 |
Φ350 |
Worktable dimension |
mm |
3200×2000 |
3200×2000 |
3200×2000 |
Max. cutting size |
mm |
3200×2000×50 |
3200×2000×50 |
3200×2000×50 |
Max. chamfering size |
mm |
3000×1800×50 |
3000×1800×50 |
3000×1800×50 |
Blade horizontal rotation angle |
n° |
0-90° |
0-360° |
0-360° |
Chamfering orientation |
n° |
0-90° |
0-90-180-270° |
0-90-180-270°/0-360°(Optional) |
Saw blade tilting degree |
n° |
0-45° |
0-45° |
0-45°/0-90°(Optional) |
Worktable tilting degree |
n° |
0-85° |
0-85° |
0-85° |
Worktable rotation angle |
n° |
Default: None(Optional) |
Default: None(Optional) |
Default: None(Optional) |
Main motor power |
Kw |
15 |
15 |
15 |
Host frequency conversion |
|
Optional |
Optional |
Optional |
Total power |
Kw |
20.2 |
24.5 |
25.25 |
Water consumption |
m³/h |
3.5 |
3.5 |
3.5 |
Overall dimension |
mm |
5000×3000×2400 |
5000×3000×2750 |
5000×3000×2750 |
Gross weight |
Kg |
3500 |
3700 |
4000 |
