TSQ -1600S Marble Block Cutting Machine with Horizontal Blade

  • TSQ -1600S Marble Block Cutting Machine with Horizontal Blade

Product Item: TSQ -1600S
Category: Stone Cutting Machine
Views: 1474
Horizontal blade 400mm
Vertical blade max 2000mm
Main motor power 75/90Kw
Up/down stroke 1350mm
Product Manual:Double Way Marble Block Cutting Machine, two direction stone cutter saw machine, stone machinery

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION

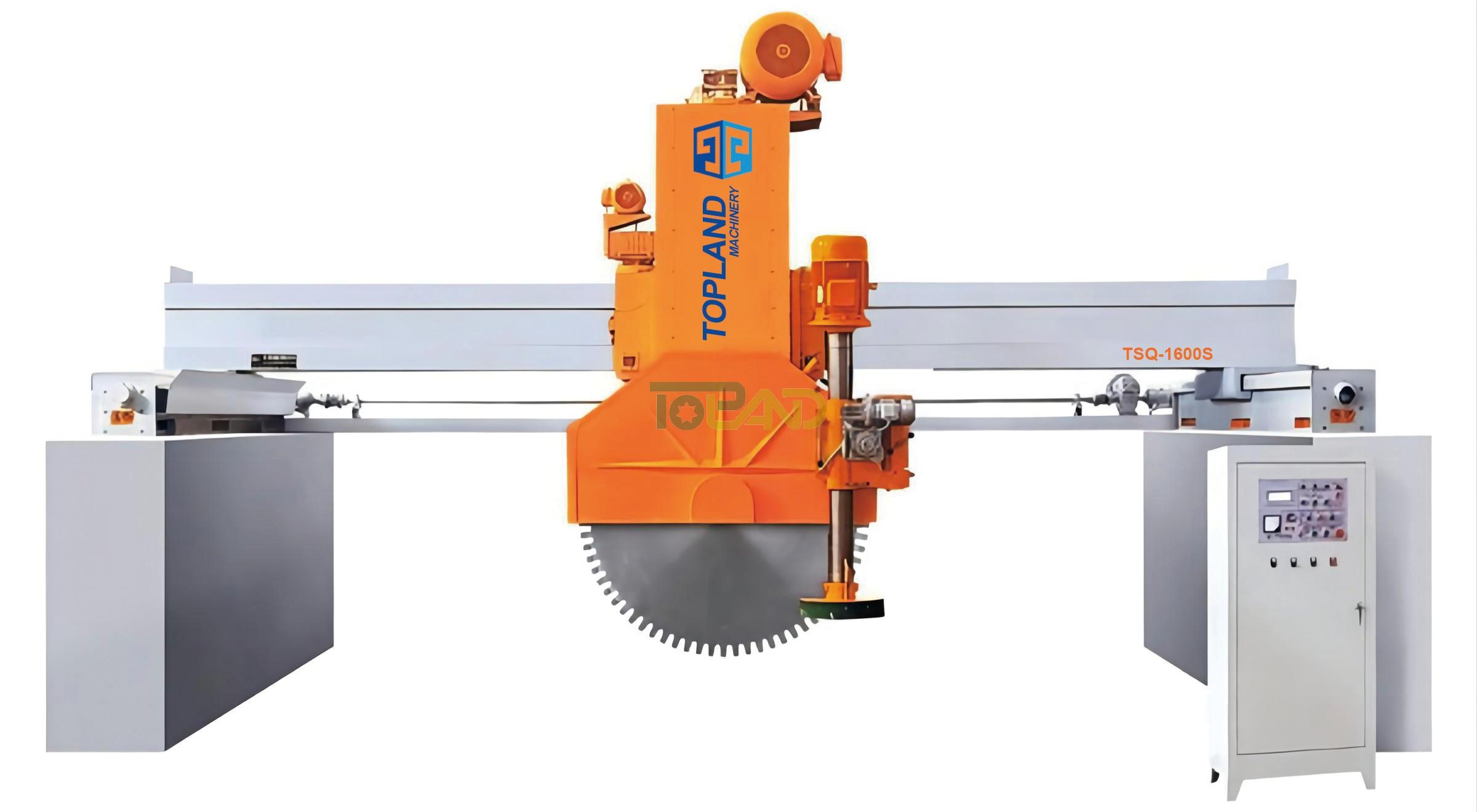

Topland TSQ-1600S automatically marble sandstone block cutting machine equipped with one vertical blade and one horizontal blade.

This is specially structure is for cutting marble tiles without manual unloading slabs. Compared with the gang saw machine, it will be more cost-efficient and good choice for cutting marble and sandstone strips.

TECHNICAL PARAMETERS

Topland | TSQ -1600S Marble Block Cutting Machine with Horizontal Blade

Model

Unit

TSQ-1600S

Main motor power

Kw

90

Max.saw disc diameter

mm

Ф1200~1600

Max.working length

mm

3500

Max.working width

mm

2500

Up/down stroke

mm

1400

Horizontal blade diameter

mm

500

Max processing size

mm

3500x2200x1400

Overall size

mm

7500x4200x6000

Gross weight

Kg

12100
