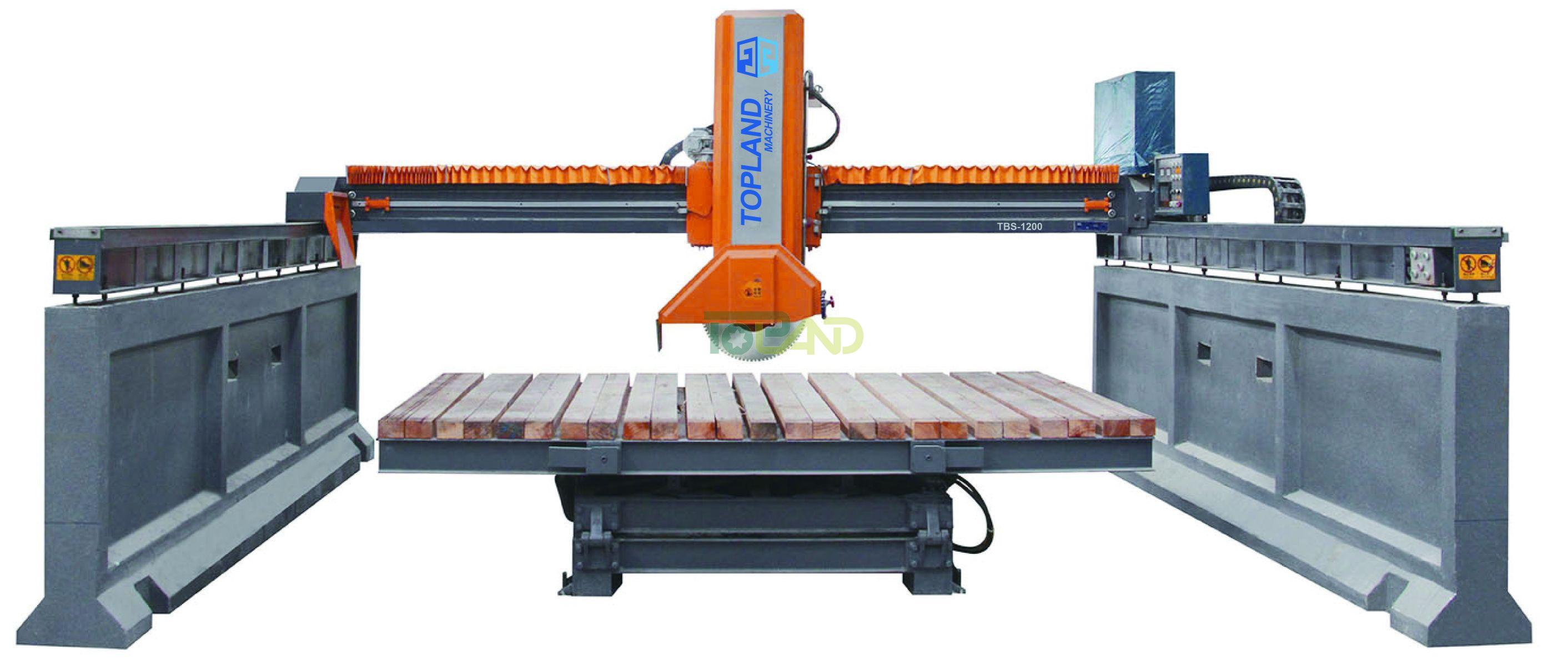

TBS-1200 Infrared Bridge Type Medium Stone Cutting Machine (Thick)

  • TBS-1200 Infrared Bridge Type Medium Stone Cutting Machine (Thick)

Product Item: TBS-1200
Category: Stone Cutting Machine
Views: 1746
Power of main motor:22 Kw
Blade size from 1200~2200
Table size: 3000 *2000mm
Table rotating standard 90 degre
Product Manual:China best quality gantry bridge stone saw, stone cutter, stone machinery, stone cutting machine, stone processing equipments, curved stone cutter

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL


PRODUCTS DESCRIPTION

This Topland thick stone cutting machine is a very mature machine which popular since the year of 2000. It adopts PLC control system, touch screen operation panel, and flexible HMI, plus an infrared laser to mark the cutting position.The main electrical components in control cabinet are international famous brands.

Topland bridge saw is widely used for cutting big thickness stone, such as paving tiles, tombstone plate, roadside stone bar, curbstone strips etc.

TECHNICAL PARAMETERS

Topland | TBS-1200 / 1600 / 1800 Infrared Bridge Type Medium Stone Cutting Machine (Thick)

Model No.

Unit

TBS-1200

TBS-1600

TBS-1800

Worktable dimension

mm

3200x2000

Blade diameter

mm

Φ6001200

Φ1000-Φ1600

Φ1200-Φ1800

Max.up/down stroke

mm

820mm

950mm

950mm

Worktable tilting degree

0-85n°

Worktable rotating angle



0-90°(Optional: Each 45° or 0~360°)

Main motor power

Kw

22

22

30

Total power

Kw

27.2

27.2

38.2

Water consumption

m³/h

4

5

5

Overall dimension

mm

6400×4800×4400

6400×4800×5100

6400×4800×5300

Gross weight

Kg

6100

7100

7300
