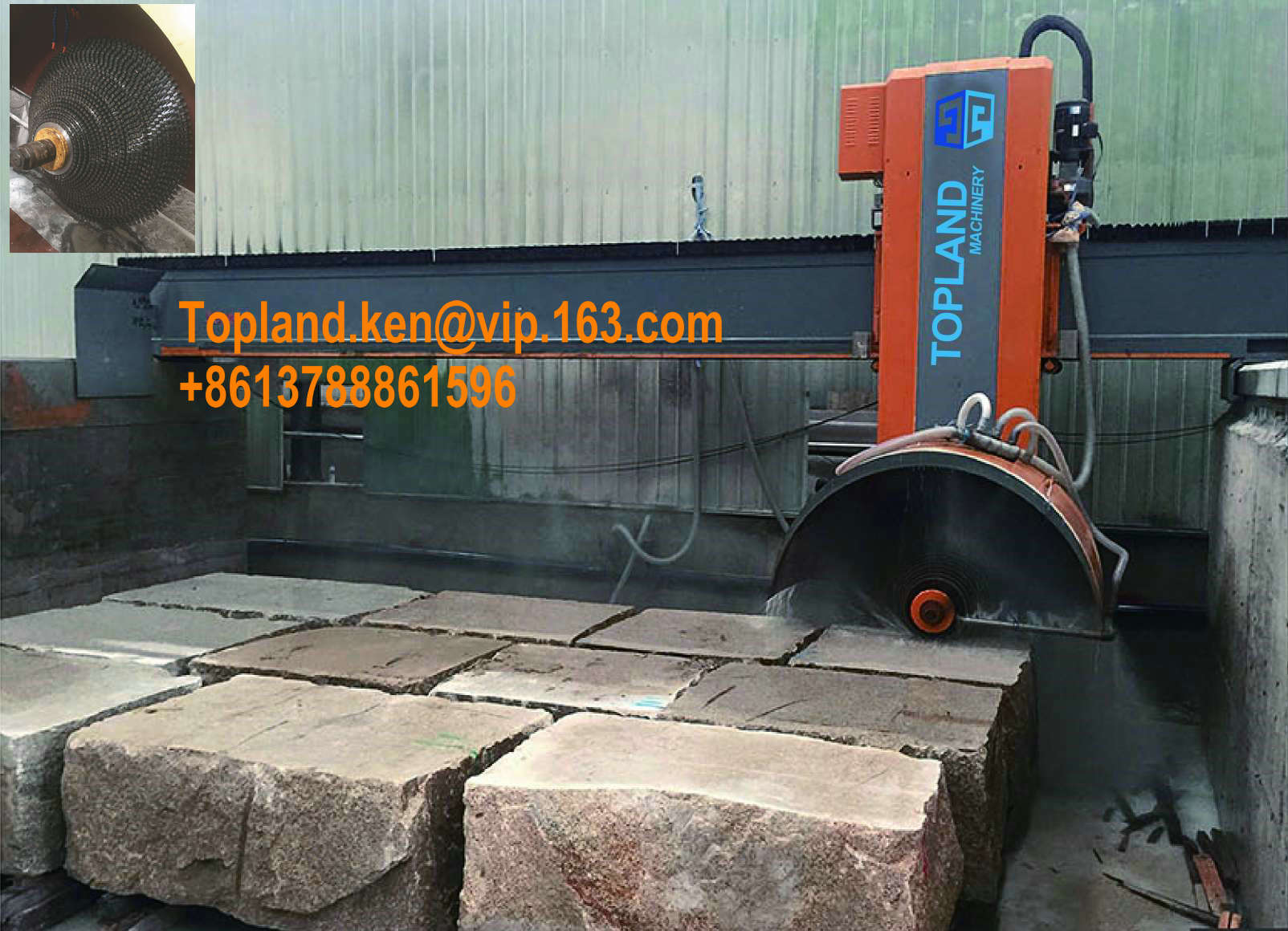

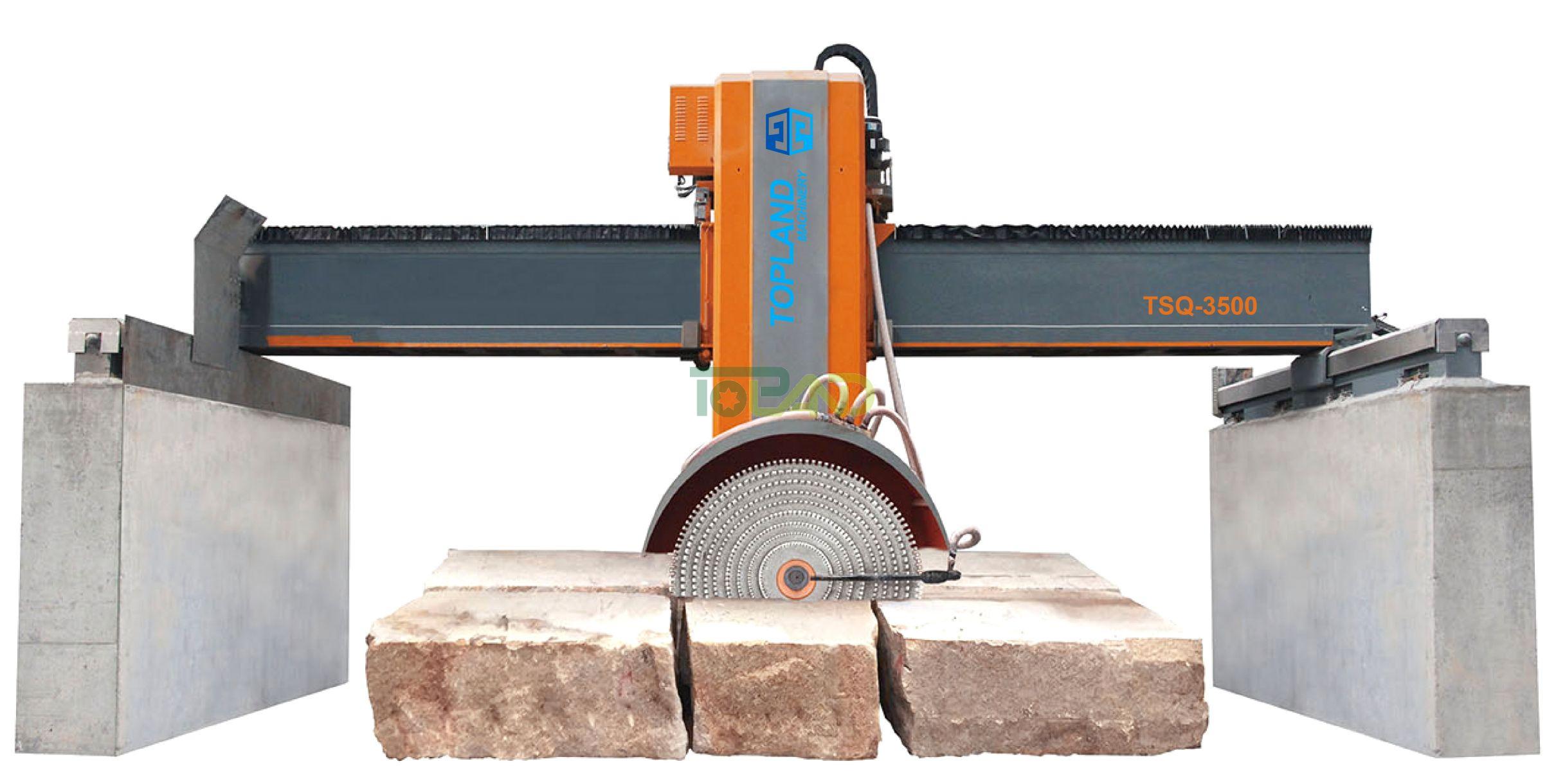

TSQ-3300/3500 Multi-blade Hydraulic Stone Block Cutter(Servo)

  • TSQ-3300/3500 Multi-blade Hydraulic Stone Block Cutter(Servo)

Product Item: TSQ-3300/3500
Category: Stone Cutting Machine
Views: 1670
Main Motor Power: 45~110Kw
Blade Diamater: 1600~3300mm
Number of Blade: 9~26pcs
Product Manual:China Good Quality Chinese stone machine, stone machinery, stone cutting machine , stone bridge saw, stone cutter , stone polishing machine , full automatic stone polisher.good quality Chinese diamond

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION



The machine adopts PLC programmable digital control and ergonomic intelligent operation interface, supplemented by high-precision rotary encoder for slicing. It can also be equipped with our independent invented servo slicing system (it won the patent certificate issued by the state Intellectual Property Office in 2019) High slicing accuracy reduces transmission system error and maintenance cost. The beam on both sides are equipped with high-precision screw nut transmission. The up/down structure adopts hydraulic system combined with high-precision chrome plated guide column. The wear-resistant guide sleeve has small matching clearance, durable and beautiful. The guide column is oil immersed: double-layer oil seal and dust ring are adopted. The speed of the main motor can be equipped with a large frequency converter (Optional)according to the diameter of the hanging saw blade, and the key electric control parts and hydraulic system adopt good quality brands. This machine can be fixed with max 21 pieces, and the block can be directly placed on the ground for cutting, saving the trolley and its maintenance cost. The machine has the advantages of high cutting efficiency, good flatness, uniform thickness, good stability and simple operation. It is especially suitable for cutting high-value granite and marble.



TECHNICAL PARAMETERS

Topland | TSQ-3300/3500 Multi-blade Hydraulic Stone Block Cutter(Servo)

Model

Unit

TSQ-3300

Star 3300

TSQ-3500

Star 3500

Crossbeam size

mm

650*750*7500

650x750x7500

800*900x9500

800*900x10500

4 Pillars diameter

mm

160

180

200

200

Left and right stroke

mm

3000~4500

3000~4500

3500~6500

4500~7500

Back and forth stroke

mm

2300~3300

2300~3300

3500

6000

Max blade diameter

mm

2800

3000

3300

3300

Water consumption

m³/h

15

15

20

20

Main motor Power

Kw

45/55Kw

55/65/75Kw

90/110Kw

90/110Kw

Overall dimension

mm

7700*4700*6800

7700x4700x6800

10060x6200x7000

11060x7700x7000

Gross weight

Kg

14500

16500

24500

26000
