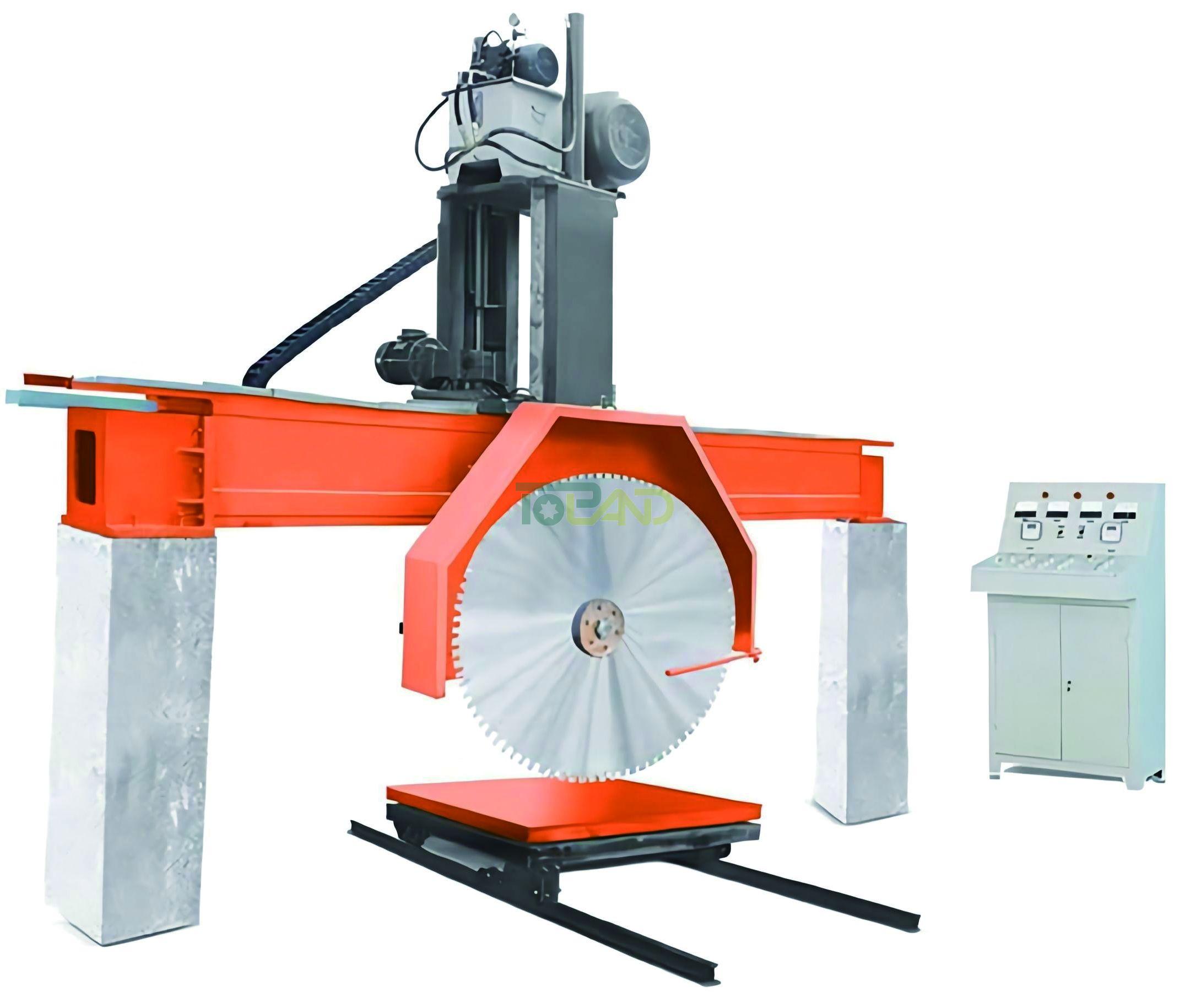

TSQ -1800 Single Blade Stone Block Cutter

  • TSQ -1800 Single Blade Stone Block Cutter

Product Item: TSQ -1800
Category: Stone Cutting Machine
Views: 1257
Max blade diameter :2200mm
Trolley size:1800*1800mm
Power of main motor: 30/37Kw
Cutting size: 3000/3500*1800*750/950mm
Product Manual:China Good quality Marble and granite stone cutting saw ,stone cutter,stone machine machinery, stone polishing machine , stone polisher,china good quality stone cutting polishing machine manufacturer

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION

Topland TSQ -1800/2200 is a simple structure machine,featured with small land occupation, rapid and stable cutting, long life and low maintenance cost.

The up/down can be hydraulic or screw driving. Rotation of worktable can be manual or hydraulic . It is mainly used for cutting medium and thick blocks, especially suitable for processing blocks with height less than 750-950. It can obviously improve the production efficiency of stone processing enterprises.

TECHNICAL PARAMETERS

Topland | TSQ -1800/2200 Single Blade Stone Block Cutter

Model

Unit

TSQ -1800/2200

Blade diameter

mm

Φ1800/Φ2200

Max.cutting length

mm

3000/3500

Max. cutting width

mm

1500

Main motor power

Kw

30/37

Total power

Kw

37.5/44.5

Water consumption

m³/h

12/13

Overall dimension

mm

5700/6100x4000x3900

Gross weight

Kg

5500/5800
