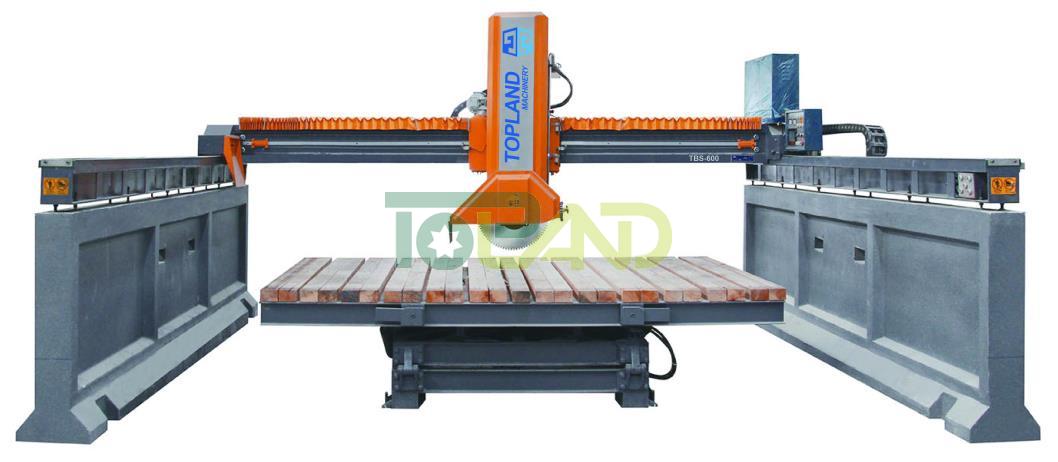

TBS-400 / 600 / 700 / 800 Infrared Bridge Saw | Stone Edge Cutter (Laser Positioning)

  • TBS-400 / 600 / 700 / 800 Infrared Bridge Saw | Stone Edge Cutter (Laser Positioning)

Product Item: TBS-400 / 600 / 700 / 800
Category: Stone Cutting Machine
Views: 1476
Blade diameter:400/600mm
Power of main motor:20 Hp
Worktable tilting :85 degree
Worktable rotationg: 90 degree
Product Manual:Stone Bridge Saw, Bridge cutting machine, Bridge Saw Machine for Marble and Granite Kitchentop / Stone machine,ytqq-500-600,maya-625,xzqq-625

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION

This Topland bridge edge cutter is a very mature machine which has been developed for more than 20 years. It adopts PLC control system, touch screen operation panel, and flexible HMI, plus an infrared laser to mark the cutting position.The main electrical components in control cabinet are international famous brands.Topland bridge saw is widely used for cutting to sized floor tiles,window strips, stair steps etc. It is a commonly required machine in stone deep processing industry like kitchen countertop processing workshop.

TECHNICAL PARAMETERS

Topland | TBS-400 / 600 / 700 / 800 Infrared Bridge Saw | Stone Edge Cutter (Laser Positioning)

Model No.

Unit

TBS-400

TBS-600

TBS-700

TBS-800

Max. processing size

mm

3200×2000×100

3200×2000×180

3200×2000×230

3200×2000×280

Blade diameter

mm

Φ350-Φ450

Φ350-Φ600

Φ350-Φ700

Φ500-Φ800

Max.up/down stroke

mm

230

380

480

580

Worktable dimension

mm

3200×2000

Worktable tilting degree

0-85n°

Worktable rotating angle

0-90°(Optional:  Each 45° or 0~360°)

Main motor power

Kw

15

18.5

18.5

18.5

Total power

Kw

21

24.5

24.5

24.5

Water consumption

m³/h

4

4

4.5

4.5

Overall dimension

mm

6000×4800×3000

6000×4800×3200

6000×5000×3400

6000×5000×3600

Gross weight

Kg

5400

5600

5800

6000
