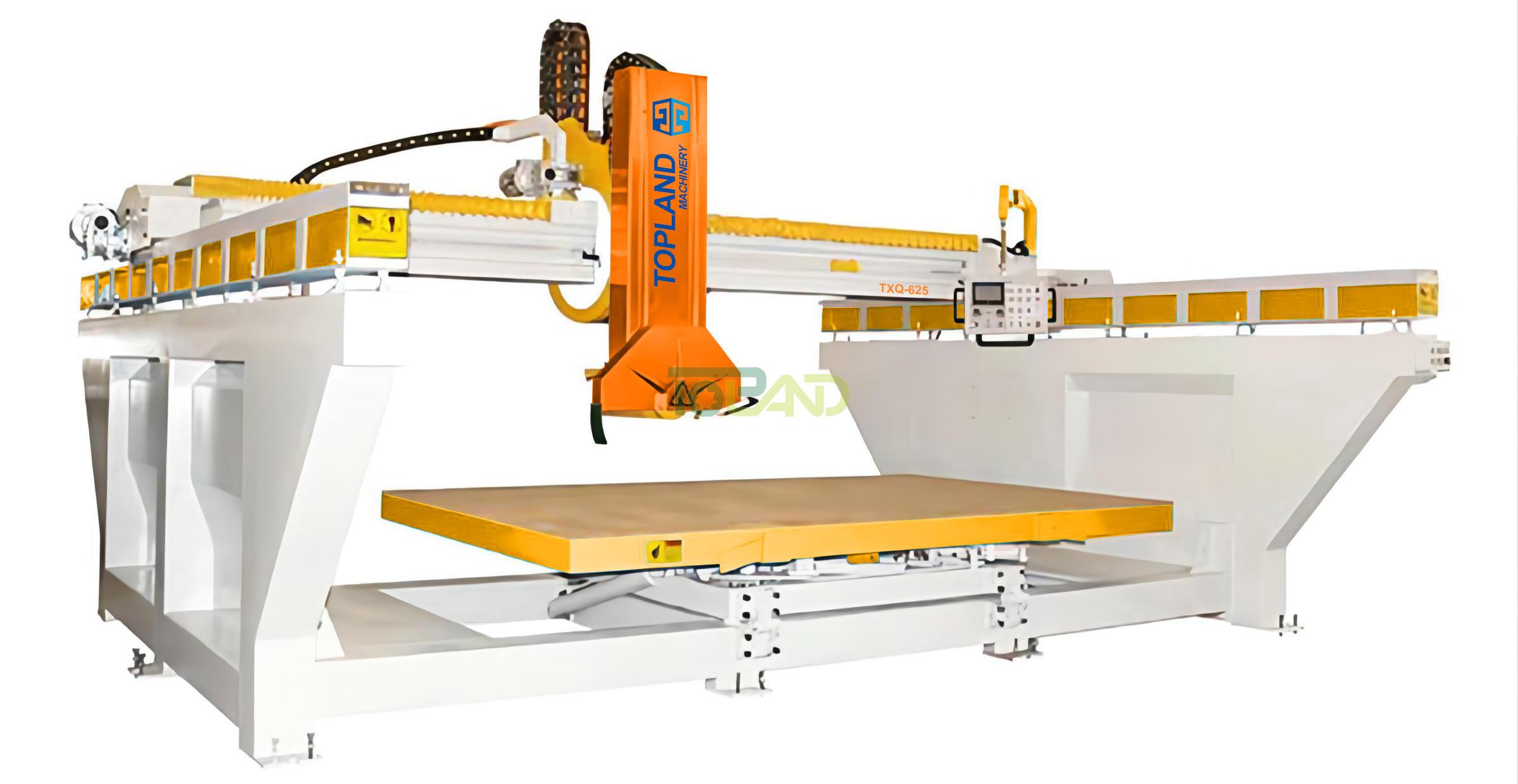

TXQ-625 Integrated Stone Bridge Saw(Head Tilting)

  • TXQ-625  Integrated Stone Bridge Saw(Head Tilting)

Product Item: TXQ-625
Category: Stone Cutting Machine
Views: 3322
Blade diameter:500mm
Power of main motor:20 Hp
Worktable tilting :85 degree
Cutting head rotation:p 90 degree
Product Manual:stone bridge saw machine, xiamen granite kitchen countertop machine, laser bridge cutter, stone cutting machine, China good quality topland brand laer stone bridge saw cutting machine factory from chi

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION

This Topland stone bridge saw is a very mature with accurate and stable performance.. It adopts PLC control system, touch screen operation panel, and flexible HMI, plus an infrared laser to mark the cutting position.The main electrical components in control cabinet are international famous brands.

Topland bridge stone saw is widely used for cutting to sized floor tiles,window strips, stair steps etc. It is a commonly required machine in stone deep processing industry like kitchen countertop processing workshop.

TECHNICAL PARAMETERS

Topland | TXQ-625  Integrated Stone Bridge SawInfrared

Model

Unit

TXQ-625

Blade diameter

mm

Φ350-Φ625

Max.working size

mm

3200×2000×180

Worktable dimension

mm

3200×2000

Worktable tilting degree

0-85

Worktable rotating angle

0-90/360

Head tilting degree

0-45

Main motor power

Kw

18.5

Overall dimension

mm

6000×4800×2800

Gross weight

Kg

6500
