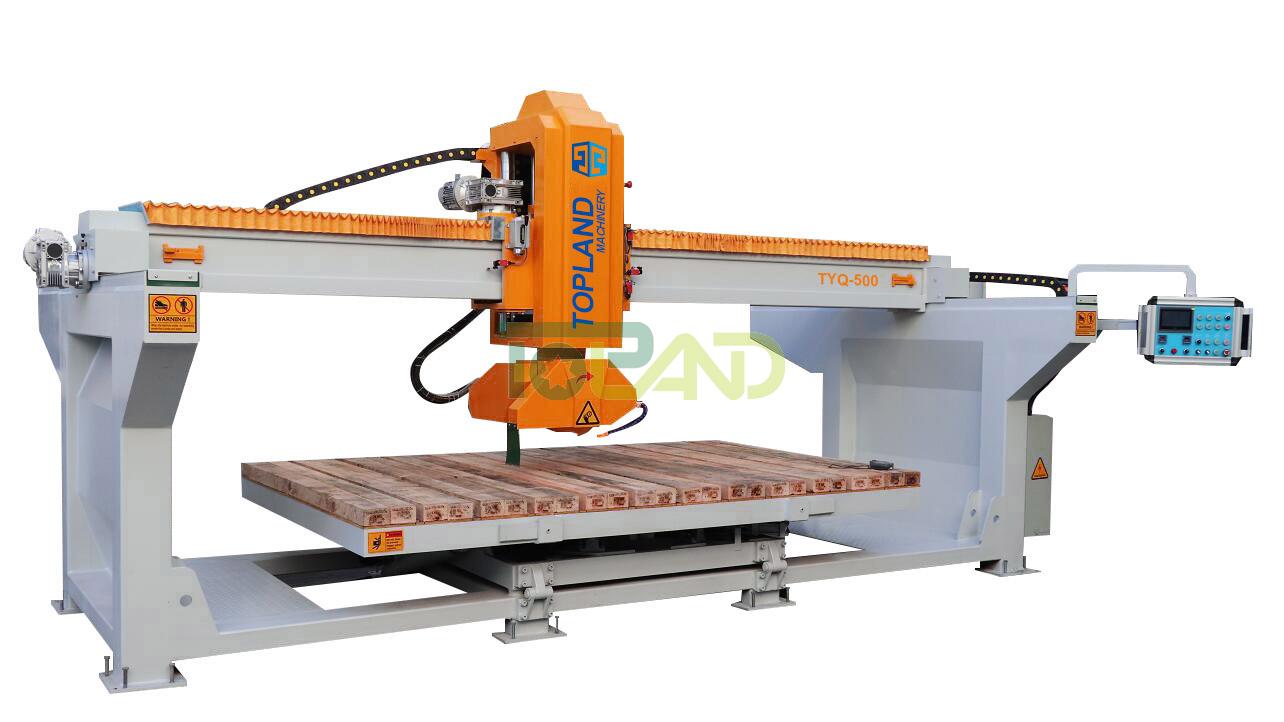

TYQ-500 Monobloc Stone Bridge Saw(Infrared)

  • TYQ-500 Monobloc Stone Bridge Saw(Infrared)

Product Item: TYQ-500
Category: Stone Cutting Machine
Views: 1965
Blade diameter:500mm
Power of main motor:20 Hp
Worktable tilting :85 degree
Cutting head rotation:p 90 degree
Product Manual:Bridge saw, xiamen granite kitchen countertop machine, laser bridge cutter, stone cutting machine, China topland stone machine,maya-625,ytqq-600-500,xzqq-625

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION

This Topland thick stone cutting machine is a very mature machine which popular since 20 years ago. It adopts PLC control system, touch screen operation panel, and flexible HMI, plus an infrared laser to mark the cutting position.The main electrical components in control cabinet are international famous brands.

Topland bridge saw is widely used for cutting to sized floor tiles,window strips, stair steps etc. It is a commonly required machine in stone deep processing industry like kitchen countertop processing workshop.

TECHNICAL PARAMETERS

Topland | TYQ-500 Monobloc Stone Bridge SawInfrared

Model

Unit

TYQ-500A

TYQ-500B

TYQ-500C

TYQ-500D

Blade diameter

mm

Φ350-Φ500

Φ350-Φ500

Φ350-Φ500

Φ350-Φ500

Max. working size

mm

3200×2000×130

3200×2000×130

3200×2000×130

3200×2000×130

Worktable dimension

mm

3200×2000

3200×2000

3200×2000

3200×2000

Head rotating degree

0-90°

0-90°

0-90°

0-90°

Blade tilting degree

Null

0-45°

Null

0-45°

Worktable tilting degree

0-85°

0-85°

0-85°

0-85°

Worktable rotating angle

Null

Null

0-45-360°

0-45-360°

Main motor power

Kw

18.5

18.5

18.5

18.5

Water consumption

m³/h

3.5

3.5

3.5

3.5

Overall dimension

mm

6000×3500×2600

6000×3500×2600

6000×3500×2600

6000×3500×2600

Gross weight

Kg

6500

7000

6500

6500
