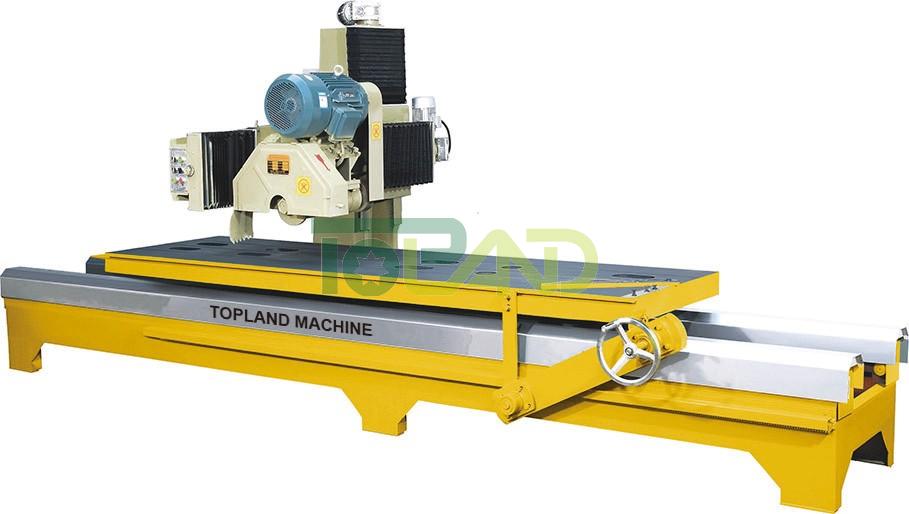

Manual Stone Edge Cutting Machine
With combination structure, rotatable cutting head and oil-immersed sealed rails, the machine is compact in structure and applicable for edge trimming and chamfering of small slabs, slab bars and thick slabs.
Max. cutting length |
mm |
3000 |
Max. cutting width(2 pieces/once) |
mm |
1100 |
Max. cutting thickness |
mm |
180 |
Blade diameter |
mm |
Ø350-Ø600 |
Up and down motor power |
kw |
0.75 |
Main motor power |
kw |
15 |
Gross power |
kw |
15.75 |
Exhausted water |
m³/h |
2.5 |
Gross weight |
kg |
2750 |
Overall dimensions(L×W×H) |
mm |
4900×2400×2150 |
