Wall cladding stone cutting machine mighty stone saw

  • Wall cladding stone cutting machine mighty stone saw
  • Wall cladding stone cutting machine mighty stone saw

Product Item: ZOOM-7
Category: Stone Cutting Machine
Views: 2523
Blade diameter:800/1200mm
Cutting depth 350/450mm
Power: 30/60 HP
Product Manual:Topland ZOOM-7 Mighty stone saw is mainly used for cutting the plane of irregular elliptical stones such bestlink as cobblestone and rough stones for wall cladding and floor paving.mighty-stone-saw-cl

Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

PRODUCTS DESCRIPTION

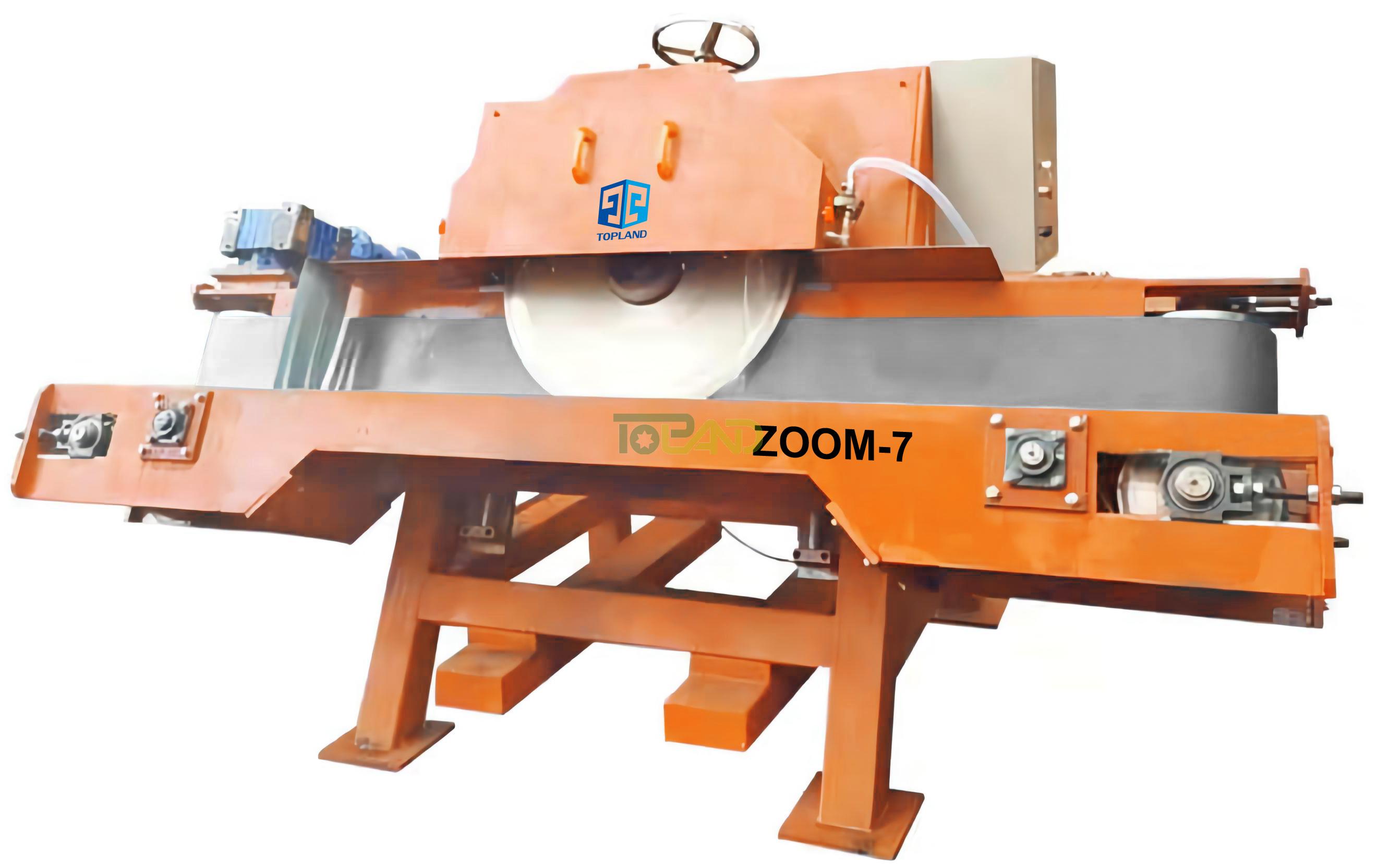

Topland ZOOM-7 Mighty stone saw is a monobloc machine with compact structure for convenient installation and transportation.
Main electrical components in control cabinet are international famous brands. The cutting main motor and cutting conveyor belt are all stepless speed bestlink regulation.

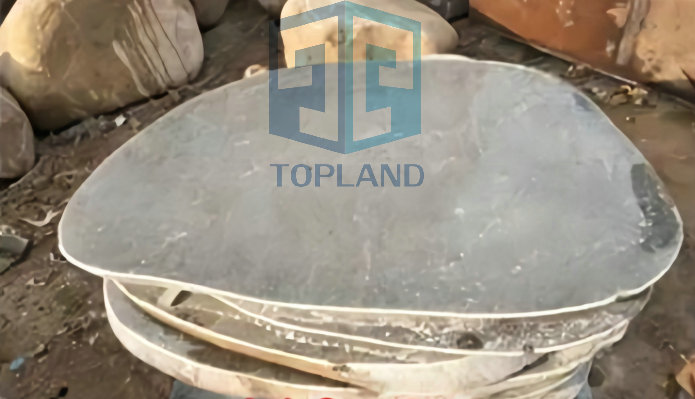

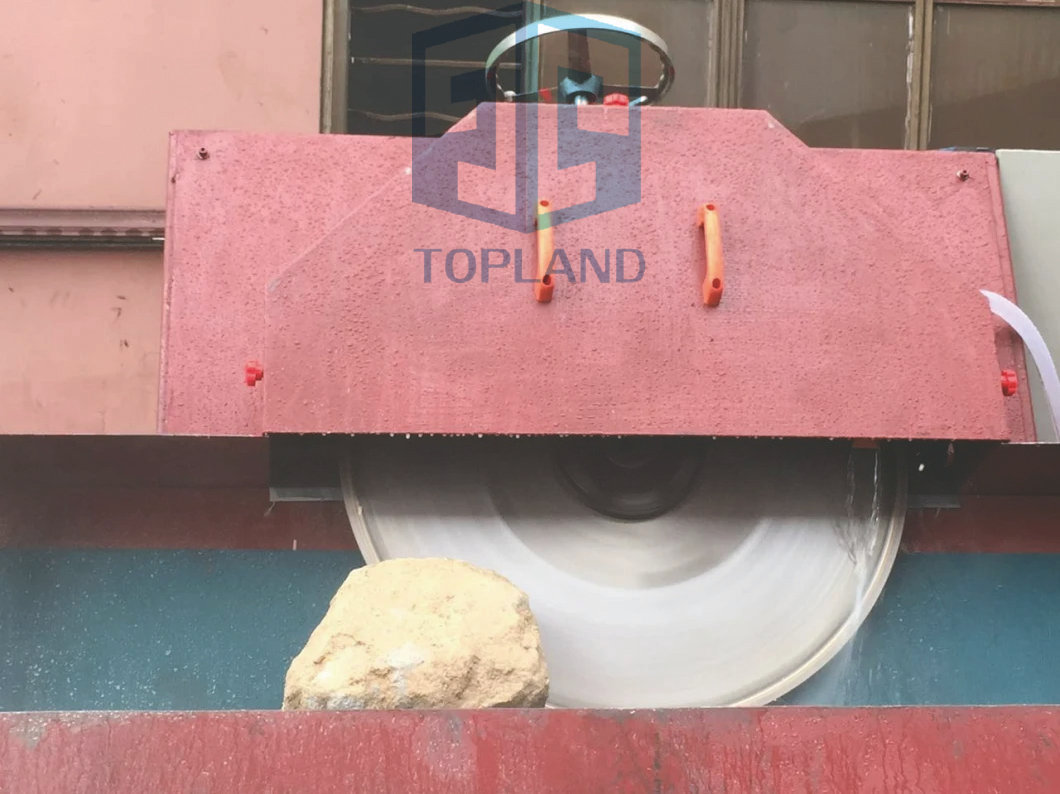

The working mode of the machine adopts the continuous belt transfering, which is mainly used for cutting the plane of irregular elliptical stones such as cobblestone and rough stones for wall cladding and floor paving.

TECHNICAL PARAMETERS

Topland  |  ZOOM-7 MIGHTY STONE SAW

Model

Unit

ZOOM-7A

ZOOM-7B

Blade diameter

mm

Φ800-Φ1000

Φ1000-Φ1200

Max. cutting depth

mm

250~350

350~450

Blade speed standardadjustable

rpm

900

780

Conveyor belt speedadjustable

mm/min

600-2450

600-2450

Main motor power

Kw

22

45

Total power

Kw

22.75

45.75

Water consumption

m³/h

3.5

4.0

Overall dimension

mm

3100×1600×1730

3700×1600×1730

Gross weight

Kg

2200

3200
